Electrical Equipment (Low Voltage Directive) > Electrical Equipment (Low Voltage Directive)

Electrical Equipment (Low Voltage Directive)

Electrical equipment that is being sold in Europe is required to be CE Marked under the Low Voltage Directive (typically shortened to ‘LVD’). The Equivalent UK legislation is the Electrical Equipment (Safety) Regulations 2016

Electrical equipment that is being sold in the UK and Europe is required
to be CE Marked under the Low Voltage Directive (typically shortened to
‘LVD’). The Directive applies to electrical equipment that operates
between 50 to 1000 volts for alternating current or 75 to 1500 volts for
direct current and applies to new equipment that is being placed on the
market for the first time. Electrical equipment for own use must meet
the safety requirements of the Directive, but does not need to be CE
marked unless at a later date the equipment is placed on the market (i.e.
equipment is being sold or hired).

CE Marking Electrical equipment for the European market has been
mandatory since 1997, and the current Directive (2014/35/EU) came into
force on the 20th April 2016, which replaced the superseded Directive
2006/95/EC. The LVD sets out safety objectives for equipment within the
specified voltage ranges to meet. The Directive also sets out equipment
and phenomena that is excluded from the Directive.

Some key points of interest about equipment in and out of scope:

  • Equipment that intentionally communications over radio waves and is covered by the Radio Equipment Directive (replacing the
    R&TTE Directive). This Directive drops the low end of the voltage for 0 volts (for both AC and DC ranges).
  • Medical devices are not covered by the LVD, as the Medical Devices Directive contains its own electrical safety requirements
  • Electrical machines should not declare the LVD with the Machinery Directive. Whilst the current Machinery Directive calls upon
    the Safety Objectives of the LVD, European guidance states that a Machinery Declaration must not list the LVD
  • Specific electrical machines, that operates within the voltage ranges of the LVD, maybe excluded by the Machinery Directive if
    they are covered by one of six categories (domestic household, IT, audio and video, ordinary office machinery, low voltage
    switch/control gear and electric motors). Such equipment must be CE marked under the LVD.

The Low Voltage Directive was replaced on the 20th April 2016, by 2014/35/EU, so therefore from this date any new Declarations should
quote the new Directive number.

Conformity Requirements

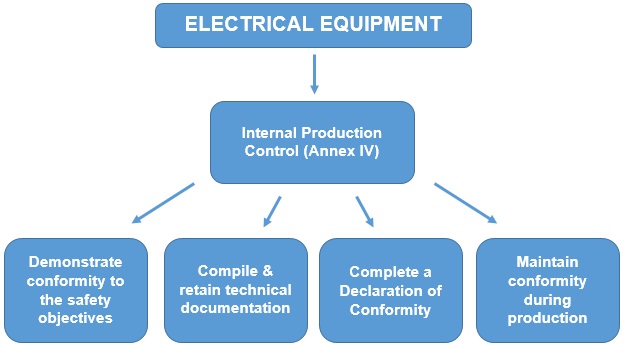

The Directive has a single route to conformity for electrical equipment within scope, which is shown below:

LVD process diagram

Most will find the Safety Objectives (set out in Annex I of the Directive) to be too awkward and too open to
interpretation to enable them to assess their products directly against the requirements. However there is a very good
list of harmonised standards available, such as EN 60335-1 for household and similar appliances or EN 62368-1 for
information technical/audio visual equipment, to provide better solution for meeting the Safety Objectives of the Directive.

Once a manufacturer has completed these tasks and found that the electrical equipment fulfils all of these
requirements, then it can be deemed to be CE marked and is now ready to be placed on the market.

How Can We Help?

The CE Marking Association assists manufacturers, importers and users of electrical equipment on a day to basis and we have a range of services to
meet your needs. We can undertake some or all of the tasks with our compliance services, or we can help bring the knowledge in-house with our
training and consultancy services. Here are some of the services on offer:

  • Electrical Safety Testing & Assessments to Harmonised Standards (including EN 60335, EN 62368, EN 61010 and more)
  • Undertake risk assessments as required by the Directive (and electrical safety standards)
  • Technical file compilation
  • In-company or public Low Voltage Directive training
  • Consultancy advice on related Directives, such as WEEE, RoHS & ErP

For more support on CE Marking under the Low Voltage Directive, or to find out how we can help you, please contact us as below:
